HiLine

During the development of their reference CD555 CD player, a special project ran in parallel at Naim - to develop a new signal cable that would exceed the performance their standard signal cable.

The task was to investigate all parameters of a signal carrier and to enhance the entire system instead of just improving the cable, which is the more typical development practice. The outcome of this research project was the Hi-Line signal cable.

The HiLine is available with either DIN or RCA terminations to suit your system's requirements.

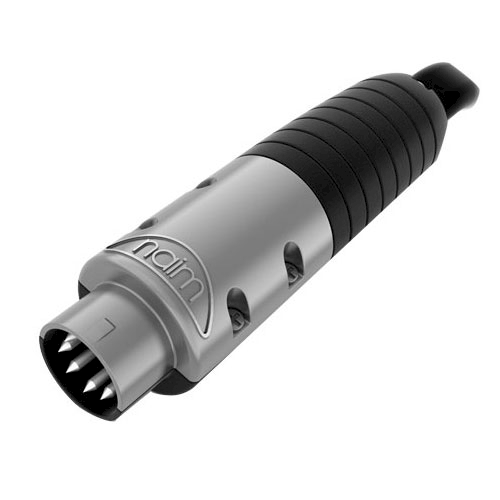

Its patented Air-Plug connector functions as a decoupling device that minimizes the vibration transmitted along the cable, thus preserving your system's precious musical quality. Its primary function is to minimise microphonic interference while preserving the quality of the audio signal. The Air-Plug comes with various rear sections that are clipped together to form a lossy flexible section. The cable is then clamped compliantly to the end of this flexible section.

The cable was designed with great attention to detail to preserve the audio signal integrity and improve sound quality. It is made up of twisted pairs of 80 Litz conductors surrounded by PTFE, Kapton, and PTFE tape. It is then enclosed within a semi-conductive shield to reduce static charges. Two spiral-wound copper shields and lapped PTFE tape further wrap this assembly. Two of these assemblies are placed side by side and wrapped with layers of PTFE tape, finally covered with a rubber outer layer. This two-channel cable maintains the signal and RF grounds in a static position relative to each other, eliminating any difference in field between them.

FEATURES

• Patented Air-Plug decoupling mechanism prevents vibration transmission through the cable
• Twisted-pair cable construction consisting of 80 litz conductors surrounded by individual spiral shielding layers of PTFE and Kapton
• DIN & RCA terminations are available including DIN to RCA or RCA to DIN, if required
